Passenger Cars of the South Park

Coaches #27 & #28 - Page 2

DSP&P

U.P. 1885 DL&G 1889 C&S 1899 C&S 1906
#27 #70 #70 #164 #80
#28 #71 #71 #165 #81


PHOTOGRAPHS & PLANS

(Photos with Source and Page in blue are best to show car details.)

# DATE PHOTOG. LOCATION SOURCE PAGE C REMARKS
(1) 1886 Unknown Boreas Pass Digerness2 122 DD DSP&P coach #70
(2) 1892 F.E. DuBois Garfield Quarry Digerness1 130 DD DL&G coach #70
  1906 H.G. Jones above Grant Kindig 157(u) TG C&S coach #164 on side
(3) 1906 H.G. Jones above Grant Digerness2 54(d) DD C&S coach #164 on side, close-up of end
Kindig 157(d) PD


We are aware of no plans for these cars.

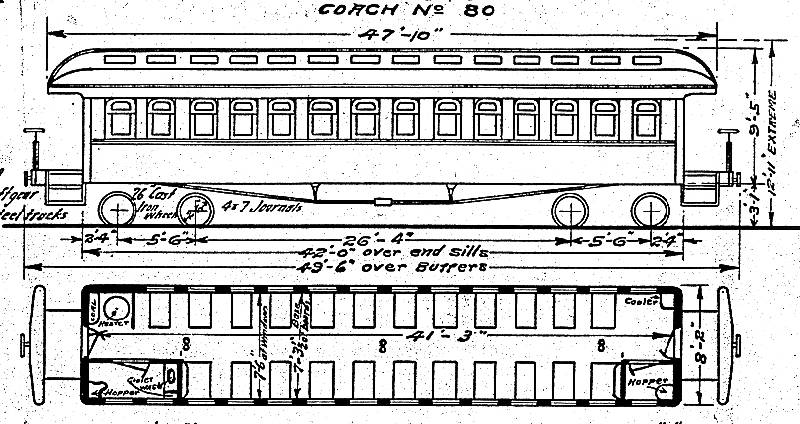

C&S coach #80 diagram page

Car diagram for C&S coach #80 updated through 1916. (Note that this is not a scale drawing.) Click pic for enlargement.


C&S coach #81 diagram page

Car diagram for C&S coach #81 updated through 1923. (Note that this is not a scale drawing.) Yes, we know this says 82-83, but see the note in the upper right corner? It was the page for #81 also, until it was sold in 1923. Click pic for enlargement.

SUMMARY

DSP&P No. #27 #28
1885 U.P. No. #70 #71
1889 DL&G No. #70 #71
1899 C&S No. #164 #165
1906 C&S No. #80 #81
Car Type

Coach

Builder

Pullman?     U.P. Omaha shops?

Date Built

Unknown

Acquired from U.P. Ry
Delivery Date

October 1884

Cost $5,500 ea.
Capacity 23 seats
Length Over Endsills 42'-0"
Length Over Buffers 49'-6"
Width 8'-2"
Weight 1912 22 tons
1916

46,820 lbs.

44,800 lbs.
Wheel Size 1885 30"
1916

26"

Truck Centers 31'-10" 31'-11"
Truck Wheelbase 5' - 6"
Heating 1885 Searle Heater

Searle circulating hot water heater

1916 Baker Heater
Lighting

Oil Lamps

Interior Finish

Maple stained mahogany

Platform Roof Bullnose
Termination Date October 1929 February 1923
Term. Method Dismantled Sold to Herr-Rubicon


Return to Page 1

13 April 2006
