Coach #3 - Geneva - Page 3
| DSP&P |
U.P. 1885 |
DL&G 1889 |
C&S 1899 |
C&S 1906 |
| #3 |
#63 |
#63 |
#160 |
#56 |
PHOTOGRAPHS & PLANS
(Photos with Source and Page in blue are
best to show car details.)
|
# |
DATE |
PHOTOG. |
LOCATION |
SOURCE |
PAGE |
C |
REMARKS |
|
(1) |
1878 |
Charles Weitfle |
Buffalo Creek Station |
Chappell |
31 |
CH |
DSP&P (Barney & Smith) coach #3 or #5 |
|
Digerness1 |
165 |
DD |
|
Kindig |
32 |
FM |
| |
1878 |
Charles Weitfle |
Buffalo Creek Station |
Ferrell/SoPk |
31 |
TK |
DSP&P (Barney & Smith) coach #3 or #5; second exposure to photo above |
|
Kierscey |
Image #0048 |
TK |
| |
1878 |
Charles Weitfle |
Platte Canyon |
Digerness1 |
161 |
CH |
DSP&P (Barney & Smith) coach #3 or #5 |
|
Ferrell/SoPk |
25 |
MF |
|
Kierscey |
Image #00249 |
TK |
| |
1879 |
Charles Weitfle |
Platte Canyon |
Digerness1 |
147 |
DD |
DSP&P (Barney & Smith) coach #3 or #5 |
| |
1880s |
Charles Weitfle |
Platte Canyon |
Chappell |
30(dr) |
CH |
DSP&P (Barney & Smith) coach #3 or #5 |
|
Digerness1 |
166 |
DD |
|
Ferrell/SoPk |
22 |
MA |
|
Kierscey |
Image #00103 |
TK |
|
Kindig |
343(ur) |
DP |
|
Poor |
136(ME) |
FR |
|
Speas |
20 |
RR |
| (2) |
1886 |
Unknown |
above Breckenridge |
Digerness1 |
386(d) |
DD |
DSP&P coach #63 |
|
Digerness2 |
122 |
DD |
| |
1918 Jun |
O.C. Perry |
South Denver |
Digerness1 |
117(d) |
DD |
C&S
coach #56 or #57 (best guess) |
|
Ferrell/C&S |
93(d) |
JT |
|
Kindig |
406(d) |
OP |
|
DPL WHC |
#OP-6205 |
CH |
Digerness1-409 purports to be a
side view drawing of DSP&P chaircar #63, but is not. First, the windows are paired as on the Plan
73 Pullman cars (South Park,
Bonanza & San Juan),
which those on the car in the photo above certainly are not. And second, the
41'-9" length of the scale drawing doesn't reconcile with any C&S passenger car,
let alone coach #63. The drawing purports to be at a scale of 3/16' = 1' but appears to have been stretched
laterally to fill the page (or shrunk vertically).
 |

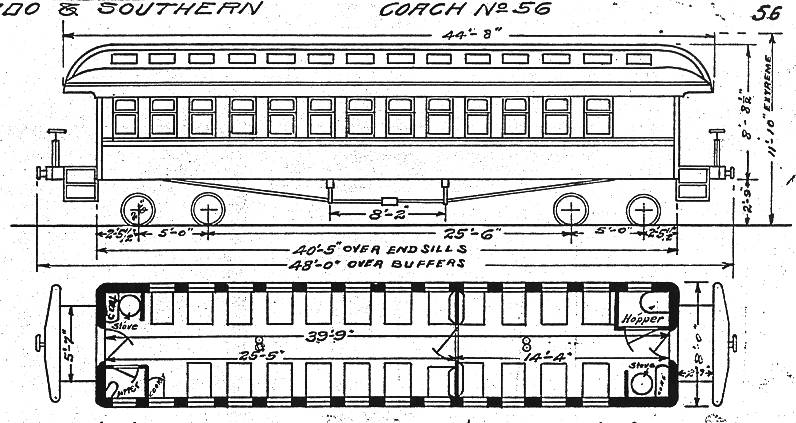

| Car diagram for C&S coach #56 updated through
1916. (Note that this is not a scale
drawing.) Click pic for enlargement. |
SUMMARY
| DSP&P No. |
#3 -
Geneva |
| 1885 U.P. No. |
#63 |
| 1889 DL&G No. |
#63 |
| 1899 C&S No. |
#160 |
| 1906 C&S No. |
#56 |
| Car Type |
Coach |
| Capacity |
21 seats (1885) 23 seats (1916) |
| Delivery Date |
29 June 1878 |
| Acquired From |
Barney & Smith Mfg. Co. |
| Length Over Endsills |
40'-5" |
| Length Over Buffers |
48'-0" |
| Truck Centers |
30'-6" |
| Wheel Size |
24" (1885) 26" (1916) |
| Truck Wheelbase |
5'-0" (1916) |
| Width |
8'-0" |
| Height of Body |
8'-8½" (1916) |
| Body Above Rails |
33" (1916) |
| Weight |
17 tons (1912) 35,320 lbs. (1916) |
| Platform Roof |
Broken bullnose (1885/90)
Bullnose (after 1900?) |
| Heating |
Stove |
| Lighting |
Oil Lamps (1916) |
| Interior Finish |
Ash Finished Oak (1916) |
| Termination Date |
Yet to be determined |
| Termination Method |
Decay |
