Coach-Baggage #1 - Page 3
|
| # | DATE | PHOTOG. | LOCATION | SOURCE | PAGE | C | REMARKS |
| (1) | 1874 | W.G. Chamberlain | Morrison | Chappell | 15(u) | RJ | DSPP coach-baggage #1 |
| Digerness1 | 124 | RR | |||||
| Ferrell/SoPk | 12 | RJ | |||||
| Kindig | 28 | AR | |||||
| Poor | 110(ME) | AR | |||||
| DPL WHC | X-11134 | CH | |||||
| (2) | 1878 | Charles Weitfle | Buffalo Creek Station | Chappell | 31 | CH | DSP&P coach-baggage #1 with Barney & Smith coach |
| Digerness1 | 165 | DD | |||||
| Kindig | 32 | FM | |||||
| 1878 | Charles Weitfle | Buffalo Creek Station | Ferrell/SoPk | 31 | TK | DSP&P coach-baggage #1 with new Barney & Smith coach | |
| Kierscey | Image #0048 | TK | |||||
| 1878 | Charles Weitfle | Platte Canyon | Digerness1 | 161 | CH | DSP&P coach-baggage #1 with Barney & Smith coach | |
| Ferrell/SoPk | 25 | MF | |||||
| Kierscey | Image #00249 | TK | |||||
| 1878 1879 | Charles Weitfle | Platte Canyon | Digerness1 | 170 | DD | DSP&P coach-baggage #1; end view, but Digerness too dark and Kierscey too far away | |
| Kierscey | Image #00250 | TK | |||||
| 1879 | Charles Weitfle | Platte Canyon | Digerness1 | 147 | DD | DSP&P coach-baggage #1 with Barney & Smith coach | |
| 1880s | Charles Weitfle | Platte Canyon | Chappell | 30 | CH | DSP&P coach-baggage #1 with Barney & Smith coach | |
| Digerness1 | 166 | DD | |||||
| Ferrell/SoPk | 22 | MA | |||||
| Kierscey | Image #00103 | TK | |||||
| Kindig | 343(ur) | DP | |||||
| Poor | 136(ME) | FR | |||||
| Speas | 20 | RR | |||||
| 1895 July | H.H. Buckwalter | High Bridge | Poor | 341(u) | RO | DL&G coach-baggage #700 | |
| (3) | 1896 or 1898 | H.H. Buckwalter | Roscoe | Digerness3 | 339 | DD | DL&G coach-baggage #700 |
| Hauck | 98(u) | KS | |||||
| Poor | 281(ME) | SW | |||||
| Mangan | 346 | ||||||
| no date | Unknown | Denver | Ferrell/SoPk | 291 | LH | C&S coach-baggage #122 | |
| (4) | 1905 | Unknown | Morrison | Poole | 204 | LH | C&S coach-baggage #122 |
| 1911? | Unknown | Unknown | Helmers | 142 | TM | C&S coach-baggage #22; baggage end platform gone; lavatory window not yet covered | |
| (5) | 1911 | Unknown | Pitkin | Ferrell/SoPk | 304 | RL | C&S coach-baggage #22; baggage end platform gone; lavatory window covered |
| Poor | 325(ME) | RL | |||||
| (6) | early 1920s | Unknown | Upper Chalk Creek Canyon below St. Elmo | Chappell | 153 | FD | C&S coach-baggage #22 |
| Digerness2 | 296 | DD | |||||
| Helmers | 137(d) | TM | |||||
| Kindig | 22 | BM | |||||
| Wagner | 57(d) | FD | |||||
| 1921 | Unknown | Chalk Creek Canyon | Speas | 150 | SP | C&S coach-baggage #21 or #22 |
There seem to be no published plans for South Park coach-baggage car #1 prior to its becoming C&S #122. The John Maxwell Collection offers a floor plan and side elevation of it then, both with and without end platforms. It is their plan C-003. Note that this plans says the car was built in 1880 by the South Park. This is based on apparently incorrect information found in the C&S passenger car diagram. (It is possible it was re-built at that time, having then seen six years of very heavy service.) An article in the October/November 1999 issue of FineScale Railroader reportedly contains plans for C&S #22.
 |
|

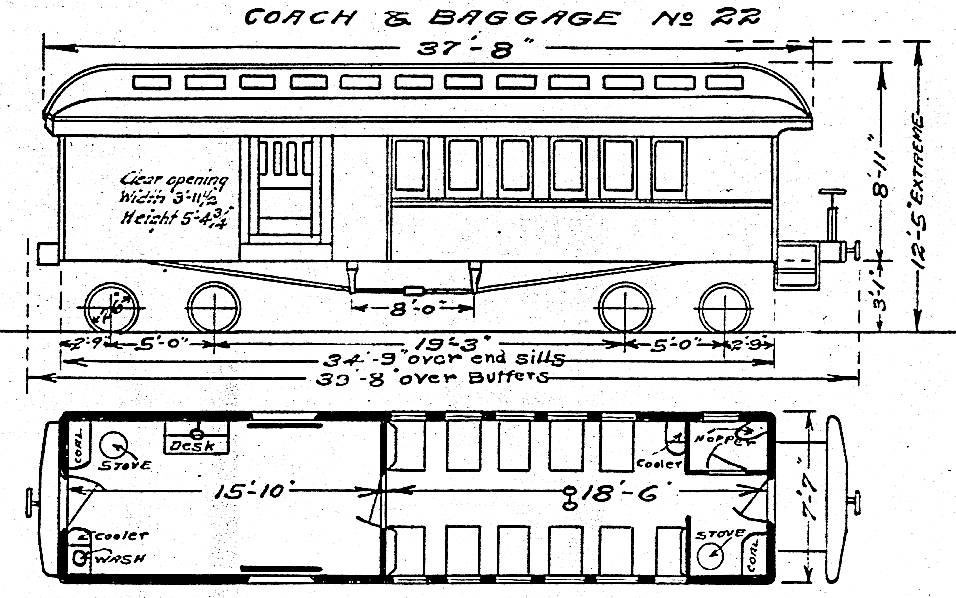

Car diagram for C&S coach-baggage car #22 updated through 1916. (Note that this is not a scale drawing, and that the placement of the baggage door is distinctly different from the photos.) Click pic to enlarge. |
SUMMARY
| DSP&P No. | #1 - Auraria |
| 1885 U.P. No. | #700 |
| 1889 DL&G No. | #700 |
| 1899 C&S No. | #122 |
| 1906 C&S No. | #22 |
| Car Type | Coach-Baggage (1885) Baggage-Coach (1906) |
| Capacity | 10 seats (1885) 11 seats (1906/1916) |
| Delivery Date | 7 July 1874 |
| Acquired From | Hallack & Bro. Lumber Co. |
| Length Over Endsills | 34'-9" |
| Length Over Buffers | 39'-8" (1916 minus one end platform) |
| Truck Centers | 24'-3" |
| Wheel Size | 24" (1885) 26" (1916) |
| Truck Wheelbase | 5'-0" (1916) |
| Width | 7'-7" |
| Height of Body | 8'-11" (1916) |
| Body Above Rails | 37" (1916) |
| Clear Opening of Door | 3'-11½" x 5'-4¾" (1916) |
| Weight | 26,600 lbs. (1885) 13 tons (1912) 34,740 lbs. (1916) |
| Platform Roof | Hooded (1874) Bullnose (1898) |
| Heating | Stove |
| Lighting | Oil Lamps |
| Interior Finish | Ash Stained Oak (1916) |
| Termination Date | June 1925? (1926?) |
| Termination Method | Sold to A.T. Herr Supply Co. Unable to find a buyer, Herr burned it for its hardware July 1928. |
