The next fixture to be mounted on the backhead of 1385’s boiler is the firedoor – the fireman’s target.  The Franklin air-operated Butterfly door had been completely rebuilt and was patiently waiting its turn to rejoin the 1385.  Like other appurtenances mounted on the boiler the firedoor will have to utilize a spacer ring to allow for the height of the staybolt heads that stand proud of the boiler surface.  As noted in earlier updates current construction codes require that the head of the staybolt stand above any weld.

The first step in the process is a simple cardboard and paper template is set on the backhead to mark the position of each of the staybolts.  The template for the adapter ring is an outline of the door mounting ring.

After the adapter ring has been cut out of a plate of steel it is set up on the bed of a CNC milling machine and the clearance notches for the staybolt heads are cut so the adapter and the door can lay flat on the boiler.

The adapter is then positioned and clamped to the backhead so the holes for the mounting studs can be drilled and tapped.

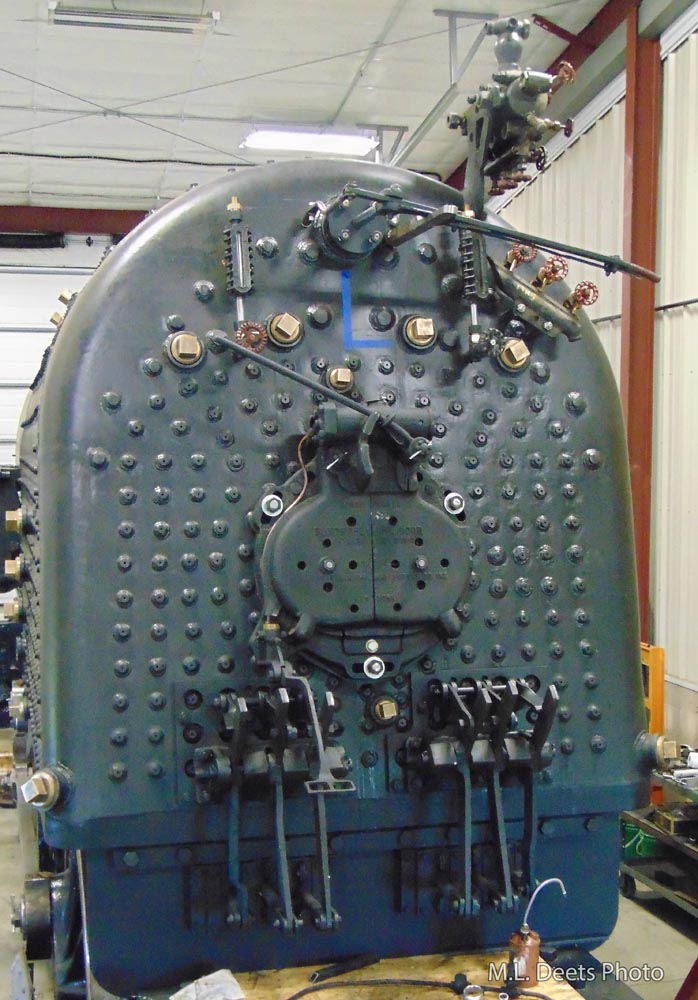

Once the drilling and tapping is finished the rebuilt door is mounted.

Here is a before and after comparison.

As an added bonus here is a short video clip of the door in action in its new home.

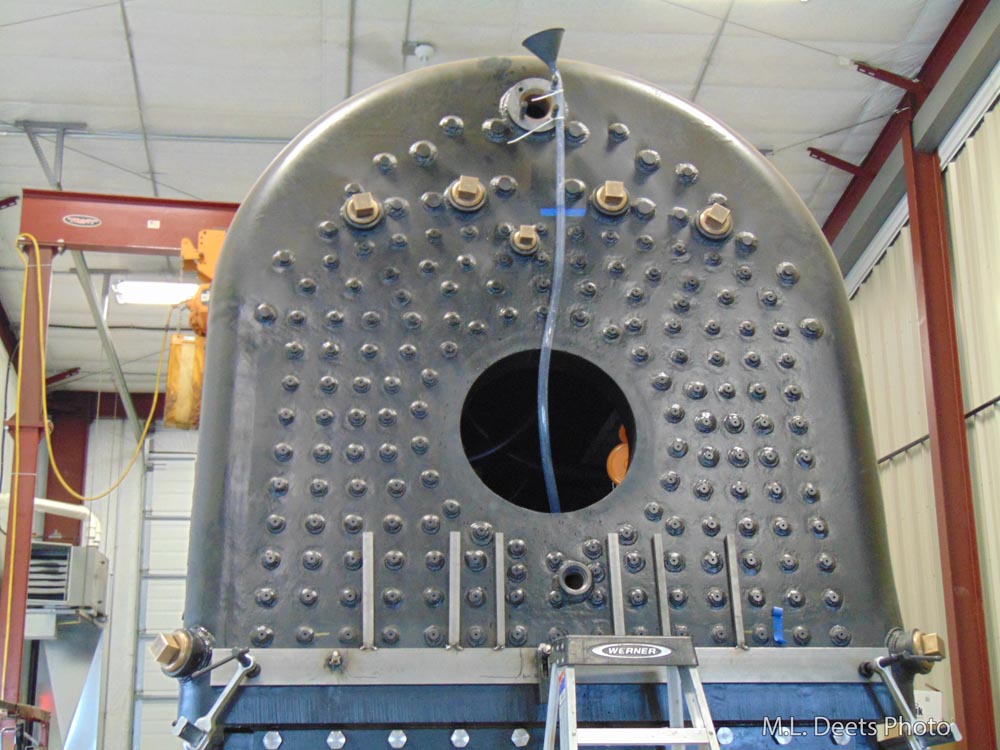

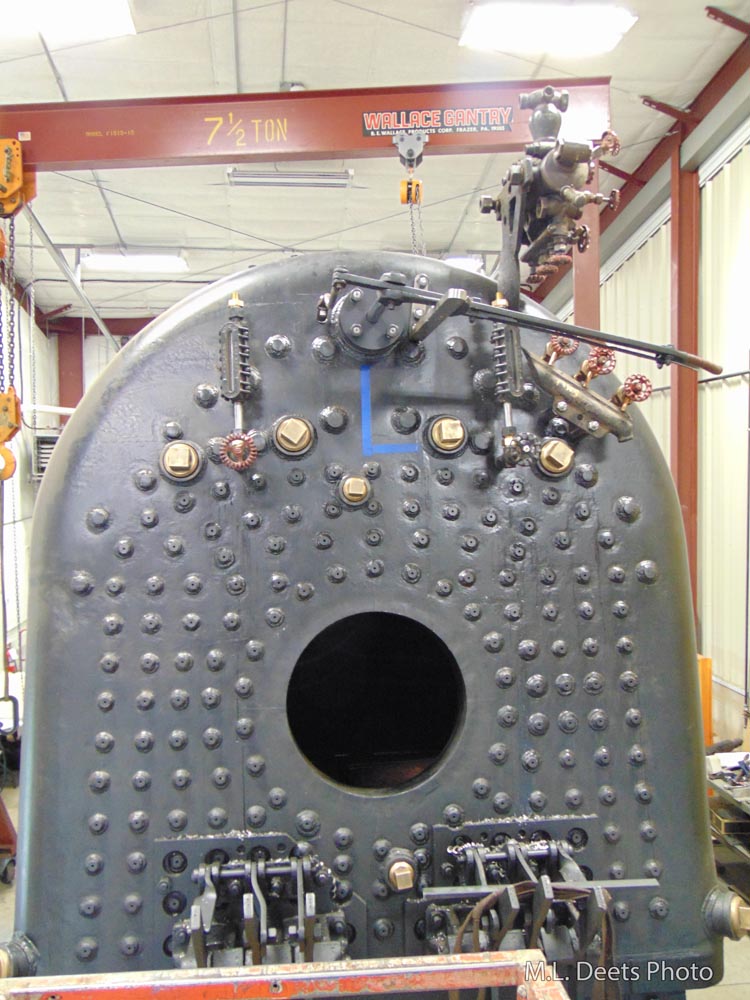

For extra credit here is a comparison of the backhead between the start of 2022 and late 2022. Installation visible included the lubricator, throttle, try-cocks, sight glasses, grates and grate shaker mechanism, and firedoor.

---
