Passenger Cars of the Colorado Central

Chair Cars #11 & #12 - Page 3

CCRR U.P. 1885 UPD&G 1890 C&S 1899 C&S 1902 C&S 1906
#11 #190 #190 #149   #61
#12 #191 #191 #150 Coach-baggage #130 #30


PHOTOGRAPHS & PLANS (Continued)

We know of no plans or drawings for these cars.

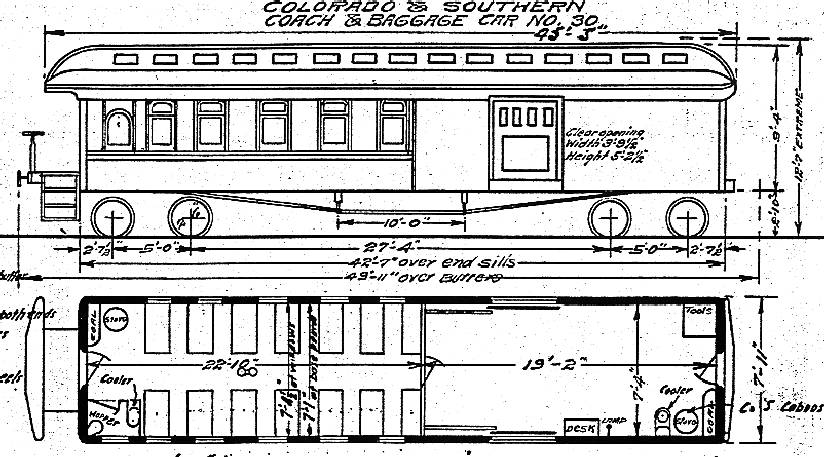

Diagram of C&S coach-baggage car #30

Car diagram of C&S coach-baggage car #30 updated through 1916. (Note this is not a scale drawing.) Click pic for enlargement.

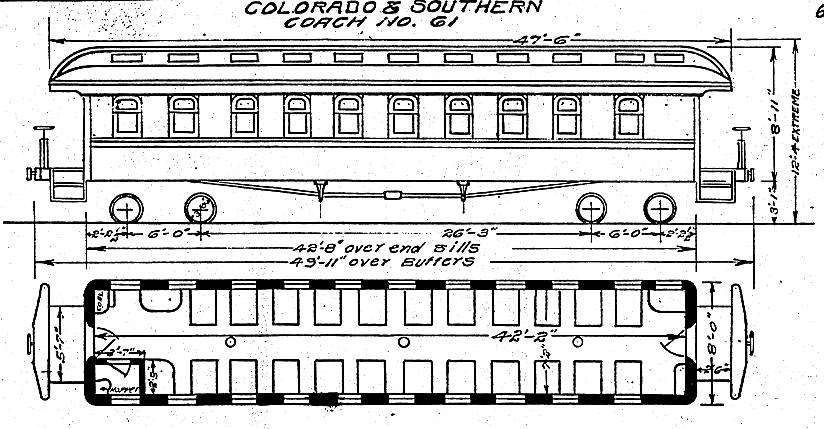

C&S coach #61 diagram

Car diagram of C&S coach #61 updated through 1916. (Note this is not a scale drawing.) Click pic for enlargement.


SUMMARY

CC No. #11 #12
1885 U.P. No. #190 #191
1890 UPD&G No. #190 #191
1899 C&S No. #150 #149
1902 C&S No.   #130
1906 C&S No. #61 #30
Car Type Chair car (1885)
Coach
Chair car (1885)
Coach
Baggage-coach (1902)
Capacity 20 (1885) (10 chairs)
25 seats (1916)
22 (1885) (11 chairs(
14 seats (1916)
Delivery Date 1879
Acquired From Ohio Falls Car Co.
Cost $3,500 each
Length Over Endsills 42'-10" (1885)
42'-8" (1916)
42'-10" (1885)
42'-7" (1916)
Length Over Buffers 49'-11" (1916) 49'-11" (1916 with one end platform)*
Truck Centers 32'-3" (1916) 32'-4" (1916)
Wheel Size 24" (1885)
30" (1916)
24" (1885)
26" (1916)
Truck Wheelbase 6'-0" (1916) 5'-0" (1916)
Width 8'-0" (1916) 7'-11" (1916)
Height of Body 8'-11" (1916) 9'-4" (1916)
Body Above Rails 3'-1" (1916) 2'-10" (1916)
Clear Opening of Door N/A 3'-9½" x 5'-2½"
Weight 18 tons (1912)
39,800 lbs. (1916)
13 tons (1912)
38,520 lbs. (1916)
Platform Roof broken duckbill until about 1900 broken duckbill until about 1900
Heating Stove (1885)
Baker Heater (1916)
Stove
Lighting Oil lamps Oil lamps
Interior Finish Walnut (1916) Walnut (1916)
Termination Date 27 July 1939 23 Sept 1942
Termination Method Dismantled & body sold to F.W. Kimmel Dismantled. Body sold at Leadville
* This dimension is probably incorrect as it would make the platform plus one buffer block = 7'-4" -- quite a veranda!


Return to Page 1

10 June 2007
