Passenger Cars of the South Park

Baggage #40, #41 and #45 - Page 3

DSP&P

U.P. 1885 DL&G 1889 C&S 1899 C&S 1906
#40 #1000 #1000 #102 #1
#41 #1001 #1001 #103 Gone
#45 #1002 #1002 #104 #2


PHOTOGRAPHS & PLANS (Continued)

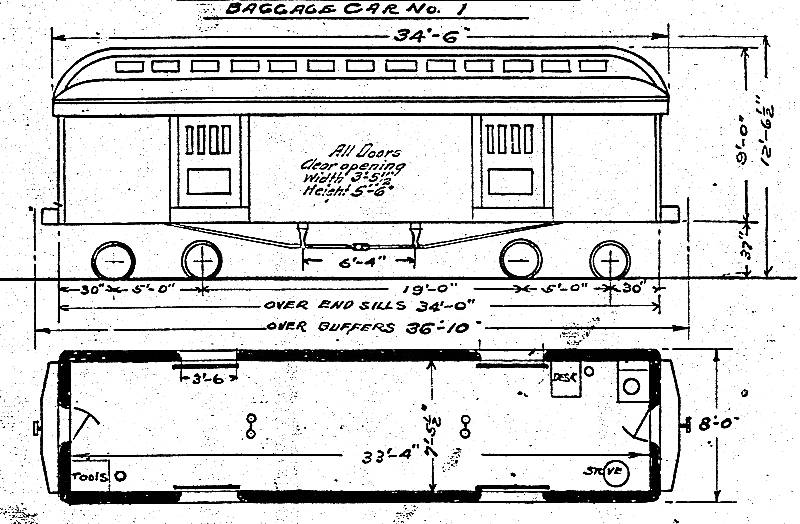

C&S baggage car #1 diagram

Car diagram for C&S baggage car #1 updated through 1916. (Note that this is not a scale drawing.) Click pic for enlargement.

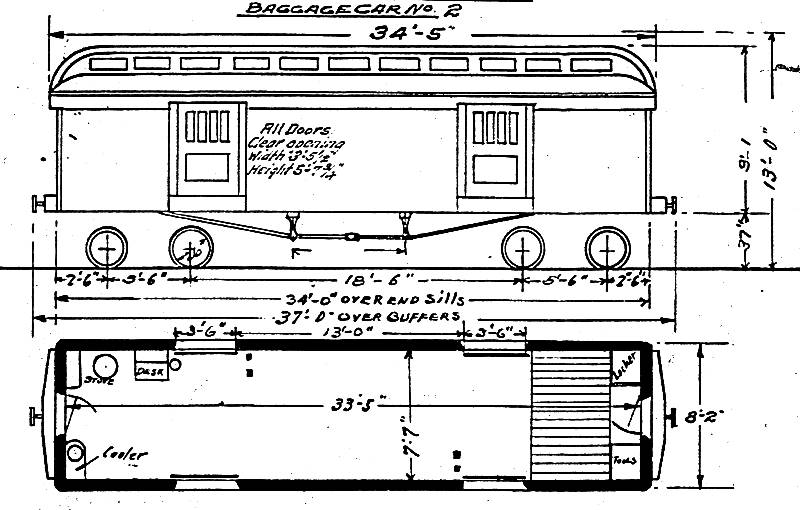

C&S baggage car #2 diagram

Car diagram for C&S baggage car #2 updated through 1916. (Note that this is not a scale drawing.) Click pic for enlargement.


SUMMARY

DSP&P No. #40 #45 #41
1885 U.P. No. #1000 #1002 #1001
1889 DL&G No. #1000 #1002 #1001
1899 C&S No. #102 #104 #103
1906 C&S No. #1 #2 Gone
Car Type Baggage
Build Date

1879

Built by South Park Denver shops
Length Over Endsills  34'-0"
Length Over Buffers (1916, no platforms) 36'-10" 37'-0" Gone
Truck Wheelbase (1916) 5'-0" 5'-6"
Truck Centers (1916) 21'-6" 21'-3"
Width (1916) 8'-0" 8'-2"
Height of Body (1916) 9'-0" 9'-1"
Body Above Rails (1916) 37" 37"
Clear Opening of Doors (1916)

3'-5 ½" x
     5'-7 ¾"

3'-5 ½" x
     5'-5"
Weight 1912 13 tons 16 tons
1916 34,400 lbs. 35,880 lbs.
Wheel Size 1885 24"
1916 26" Gone
Heating

Stove

Lighting

Oil Lamps

Interior Finish (1916)

Yellow walls, white ceiling

Gone
Platform Roof 1885 Broken duckbill
1916

Bullnose

Gone
Termination Date

1939

Not yet 1902
Termination Method

Dismantled

Stuhr Museum of the Prairie Pioneer Burned


Return to Page 1

15 September 2006
