C&NW 1385’s Boiler Design Review Meeting Held

Mid-Continent Railway Museum Posted on by

A design review meeting was held at Continental Fabricators in St Louis, Missouri on Tuesday January 24, 2017  Members of Mid Continent’s 1385 Task Force were in attendance as were Gary Bensman of Diversified Rail Services, Steve Roudebush from SPEC Machine, and Brett Morley of Performance Engineering. The meeting covered all of the details necessary to build the new boiler as well as provided a platform for everyone involved in the design process to review the fabrication plan with the team at Continental.  It was a very productive meeting with everyone having input into the planning of the new boiler and Continental coming away with some clear direction enabling them to proceed with the task at hand.

Action items to come out of this meeting include the development of Continental’s final production schedule. Fred Steinkuehler, Vice President of Plant Production at Continental is currently developing their schedule. He is basing the plan on Mid Continent’s detail drawings and expects to be finishing up within a few days. While the production department work out their timeline, the engineering department will continue the preparation of internal shop drawings. We expect Continental to be wrapping up their engineering phase over the course of the next few weeks.

With the boiler process well underway with Continental Fabricators, and the major parts of the running gear and cab near completion, the Task Force identified the many remaining accomplishments still needed. Completion times were assigned to each and a general schedule was outlined. It has been determined that, excluding any major unforeseen concerns, the 1385 can be returned to Mid-Continent next year (2018).  Timing can be determined more accurately as these projects move along.

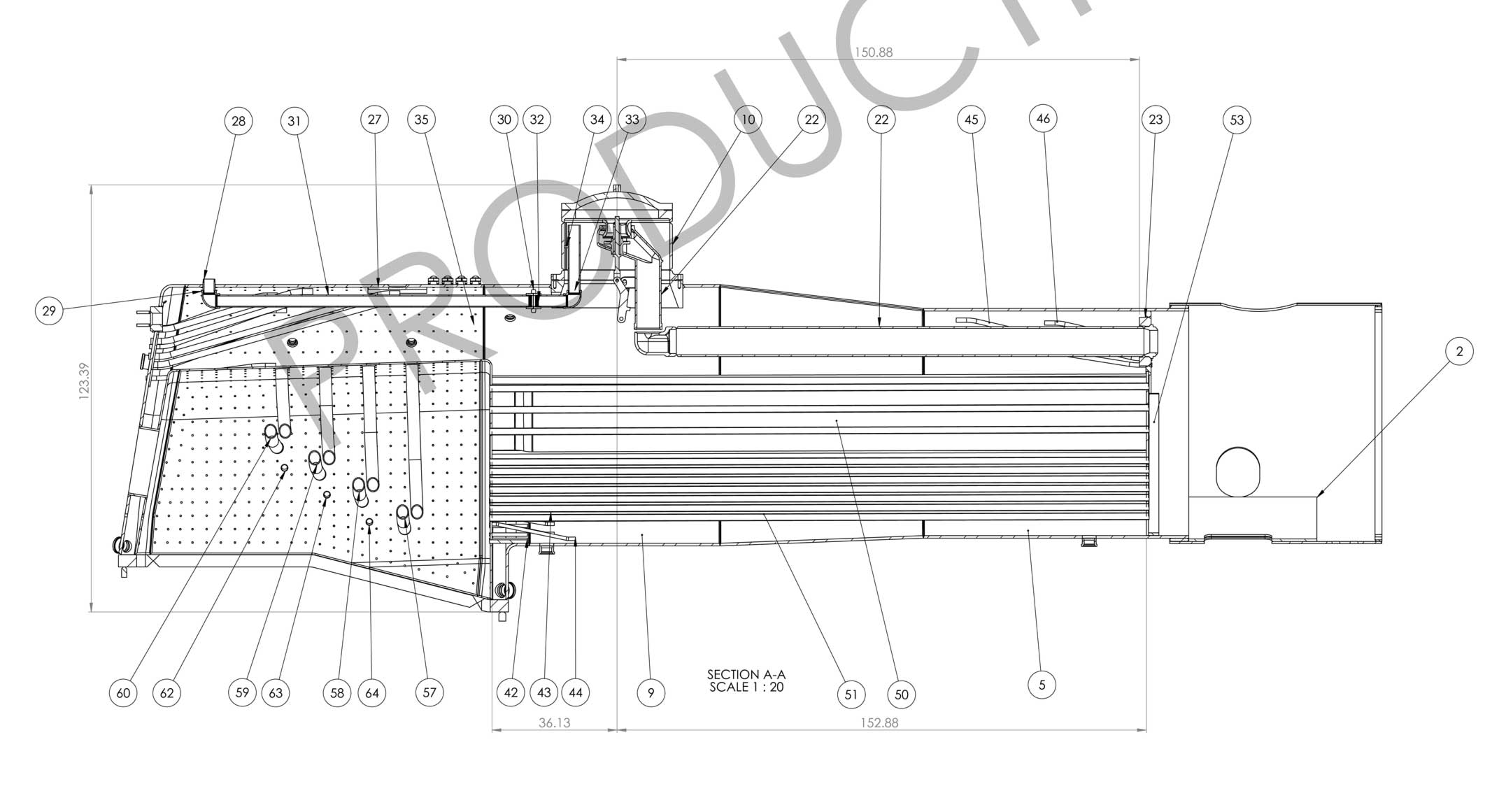

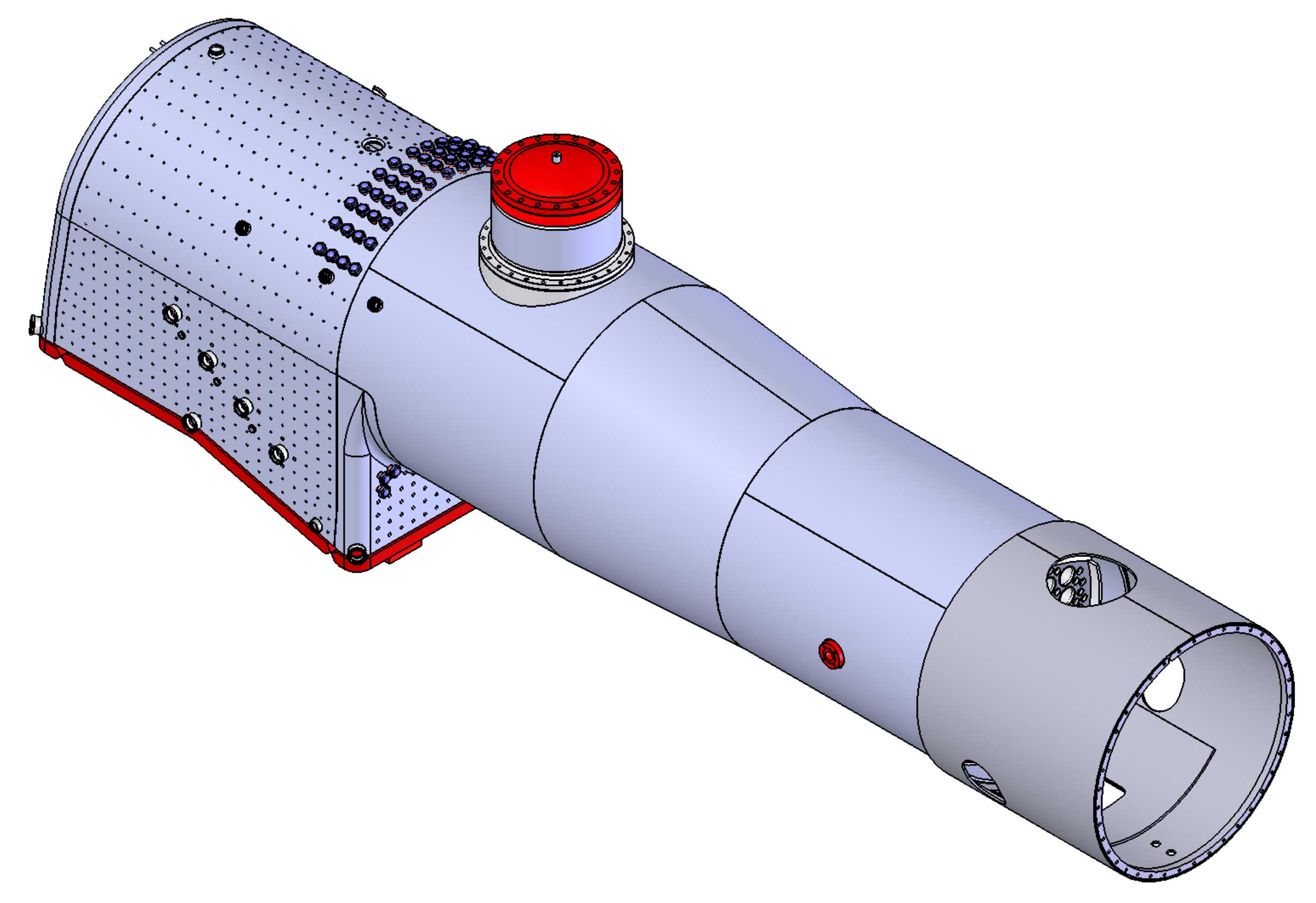

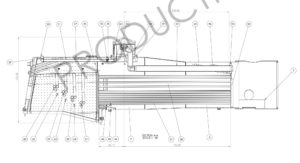

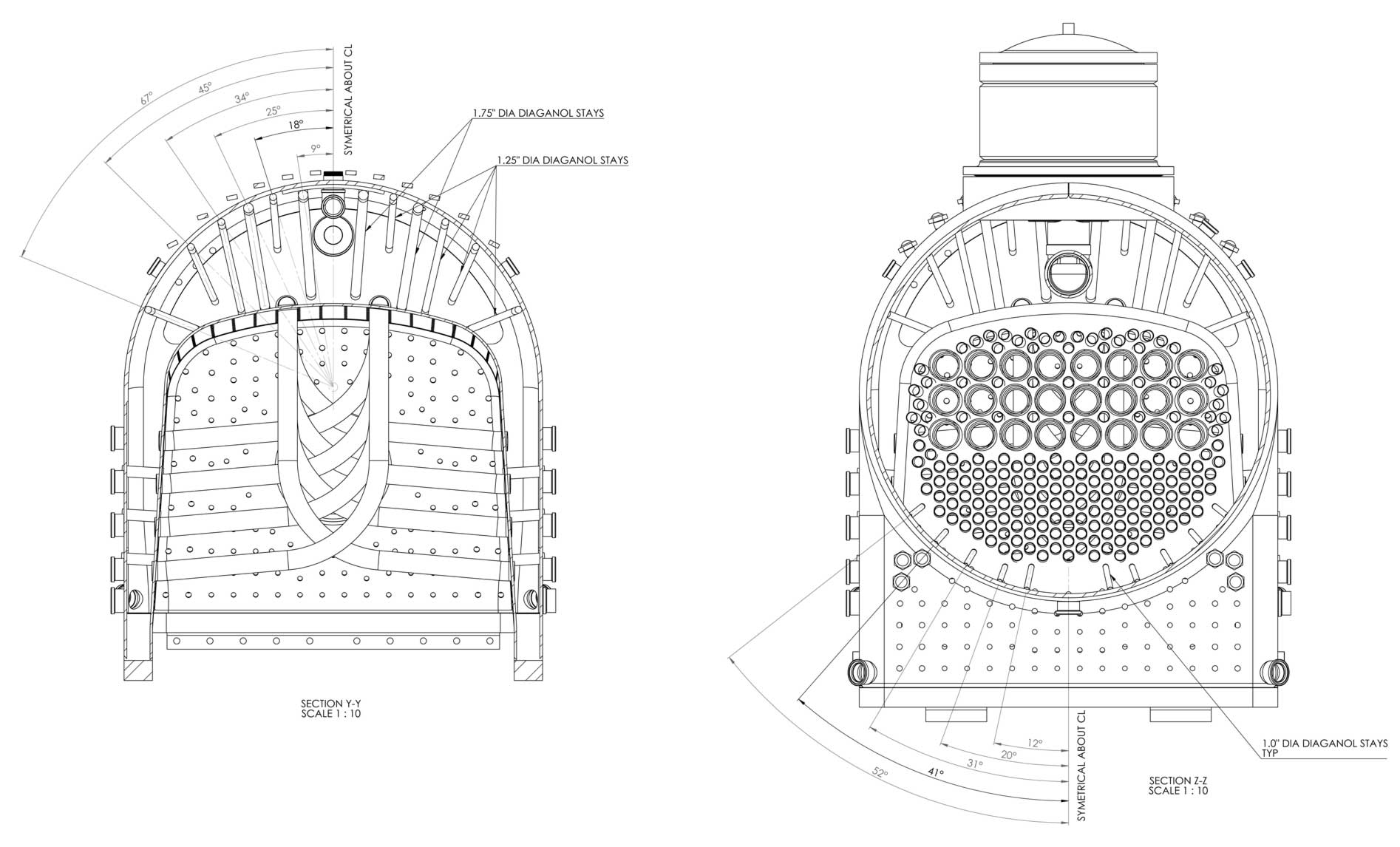

CNW 1385 Boiler Drawing 3D View

CNW 1385 Boiler Drawing 3D View

At this juncture of the 1385 restoration, it was decided to forgo hosting an Open House this year. The many hours otherwise required by Mid-Continent volunteers and staff to organize and host the event will instead be spent toward expediting the completion of 1385. In place of the Open House, there will be additional volunteer work day opportunities during the year.

The Task Force is very enthused and motivated, and thanks everyone for their support.

C&NW 1385 Front Truck Complete, Cab Receiving Finishing Details

Mid-Continent Railway Museum Posted on by

Work continues at a steady pace on Mid-Continent’s Chicago & North Western No. 1385 steam locomotive. SPEC Machine’s Steve Roudebush took some time out of his day on August 24, 2016 to show off the latest progress on the locomotive’s rebuild for this report.

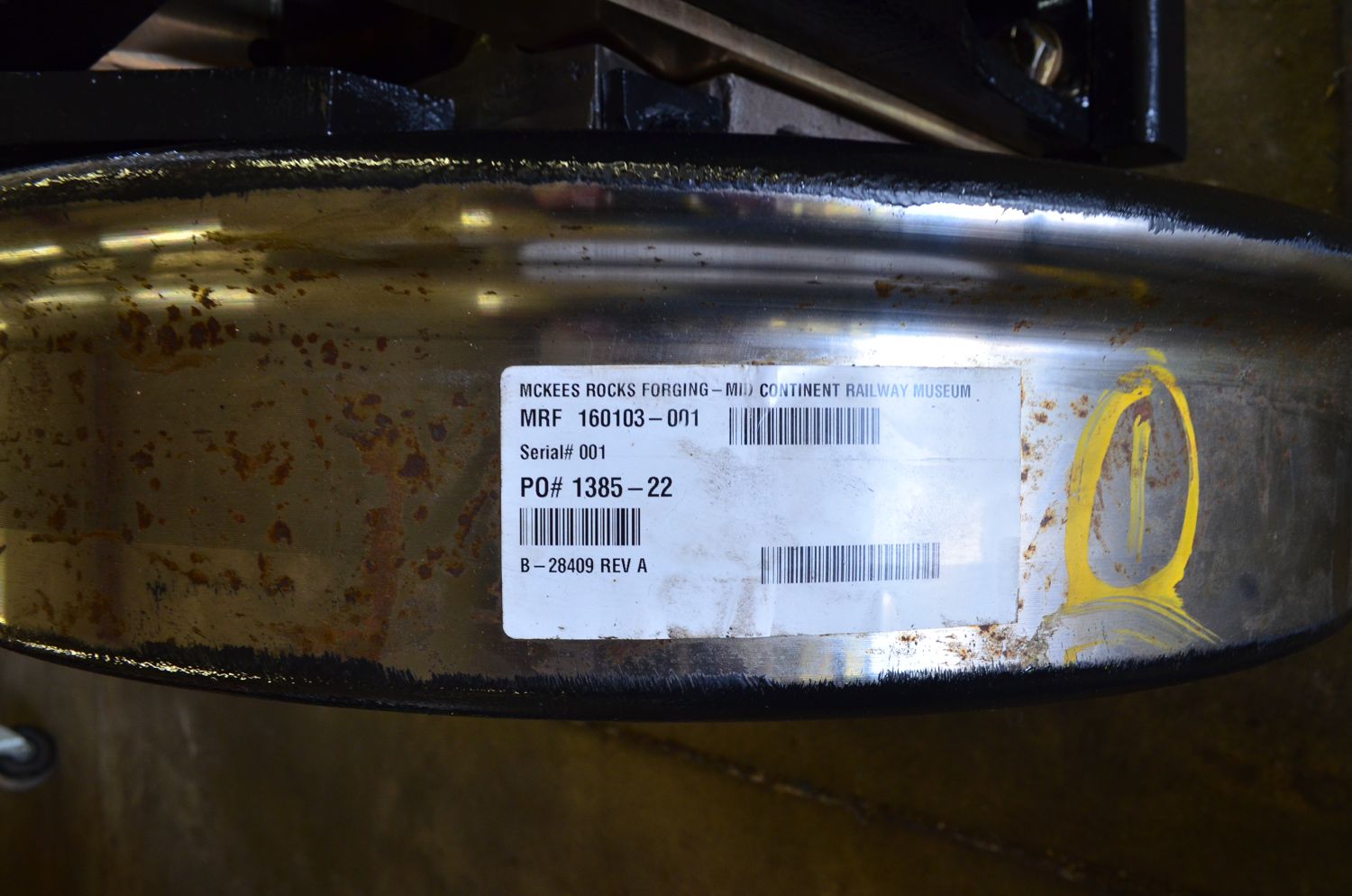

The change most instantly noticeable upon walking into the shop was the shiny, like-new front truck sitting in the center of the shop floor. Like-new may not be a fully appropriate term, as considerable portions of the front truck are new. One wheel set had a goodly amount of life left in it and merely required machining to bring it into proper profile. The second wheelset had been worn quite thin and needed to be replaced with a brand new wheelset forged in Pennsylvania for the 1385. Binders, spring hangers and truck equalizers were also created new to replace heavily worn originals.

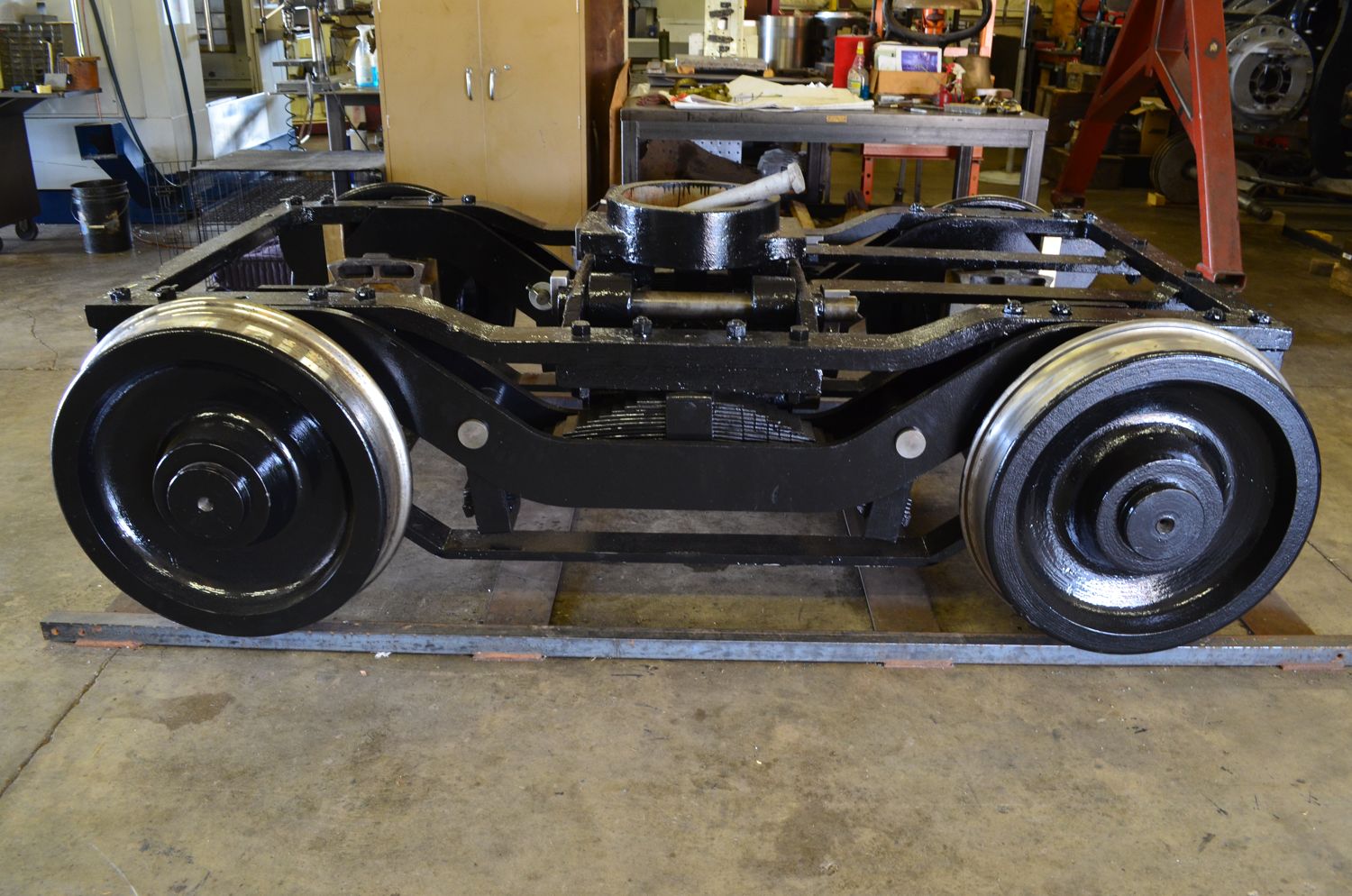

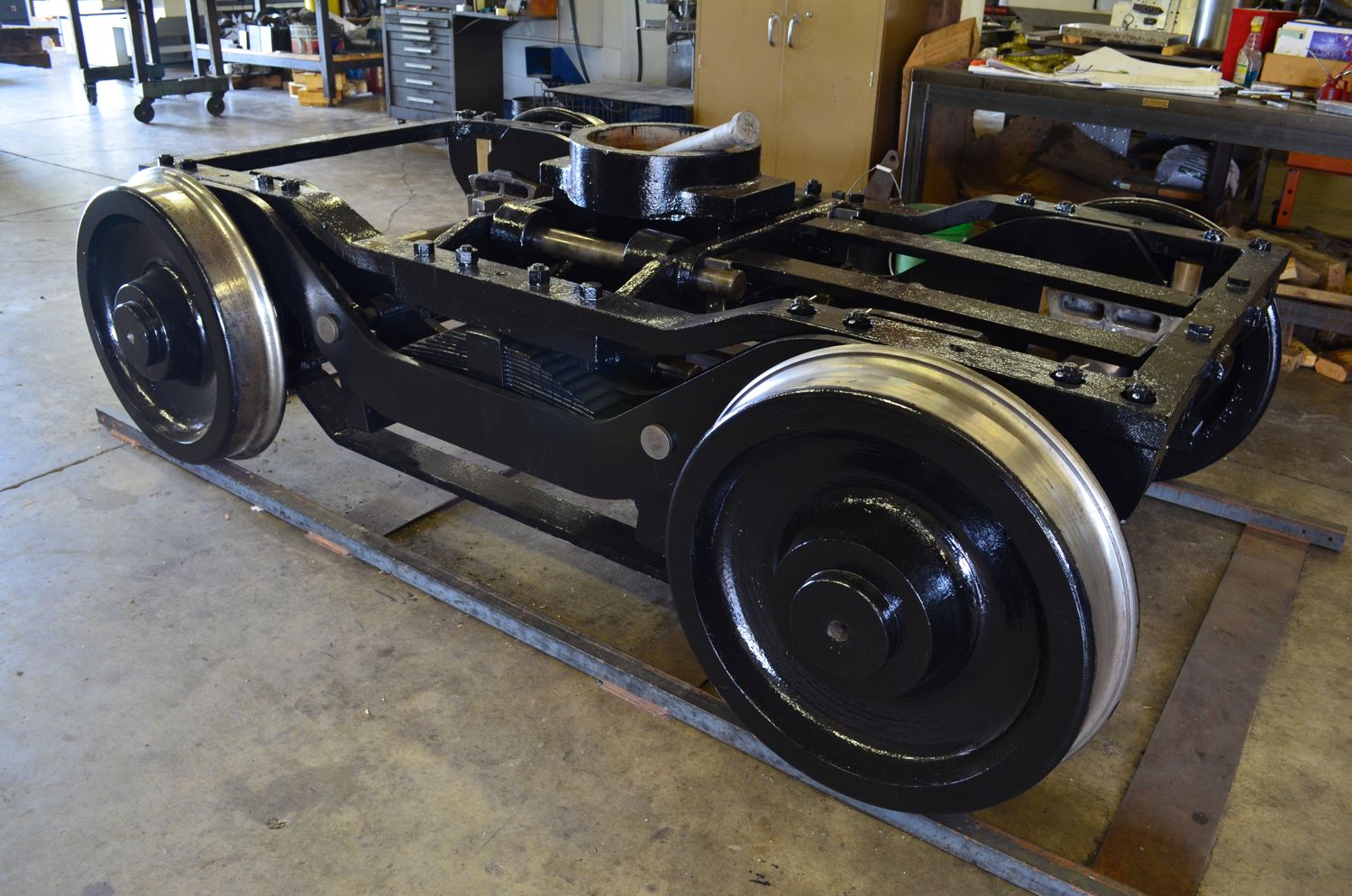

C&NW 1385 completed front truck

C&NW 1385 completed front truck

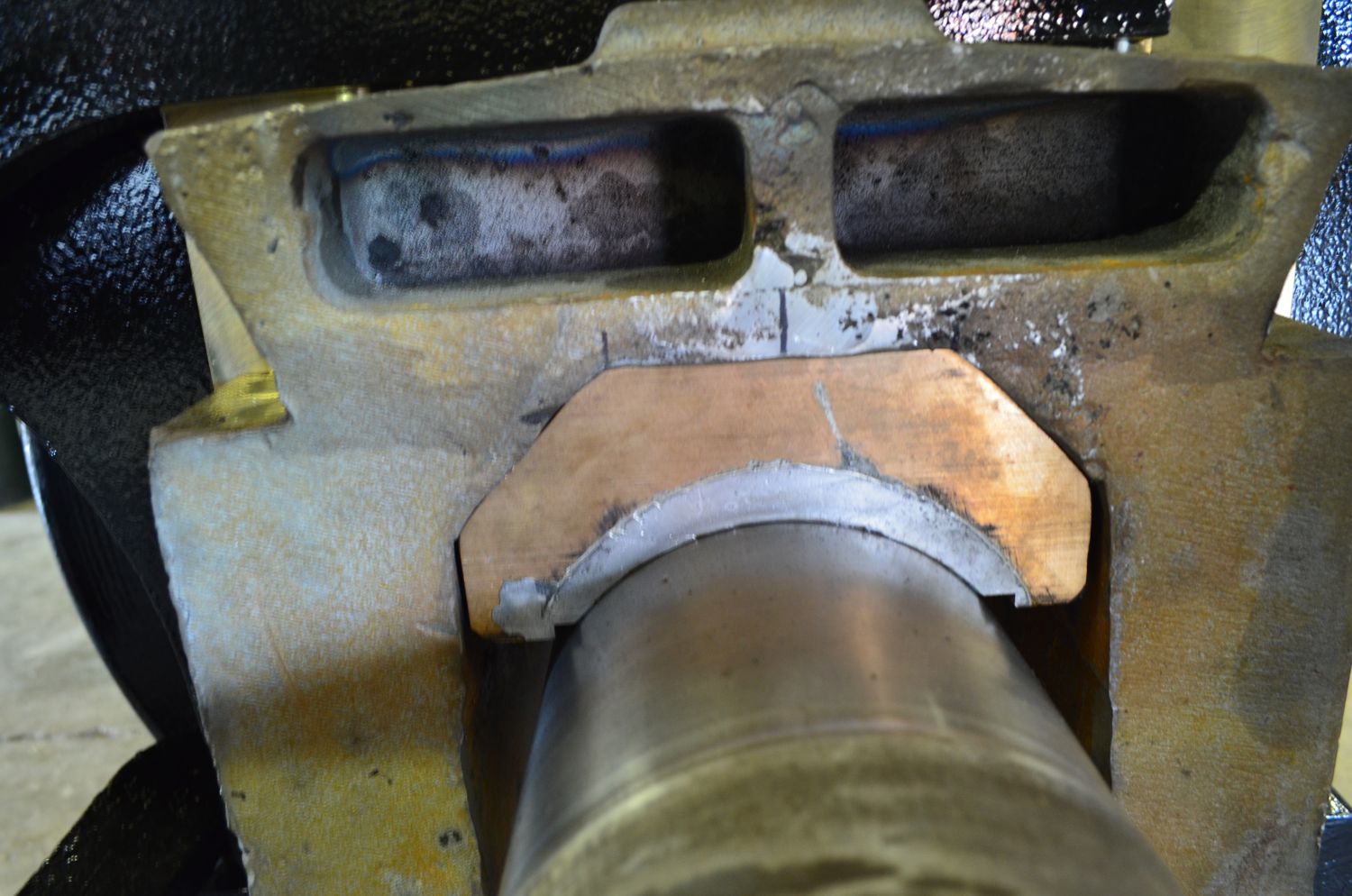

Additional work on the front truck included pouring Babbitt, lining the pedestals with bronze, and polishing pins and bushings. The front truck is fully complete and ready to be rolled under the locomotive, which is anticipated to happen sometime in September.

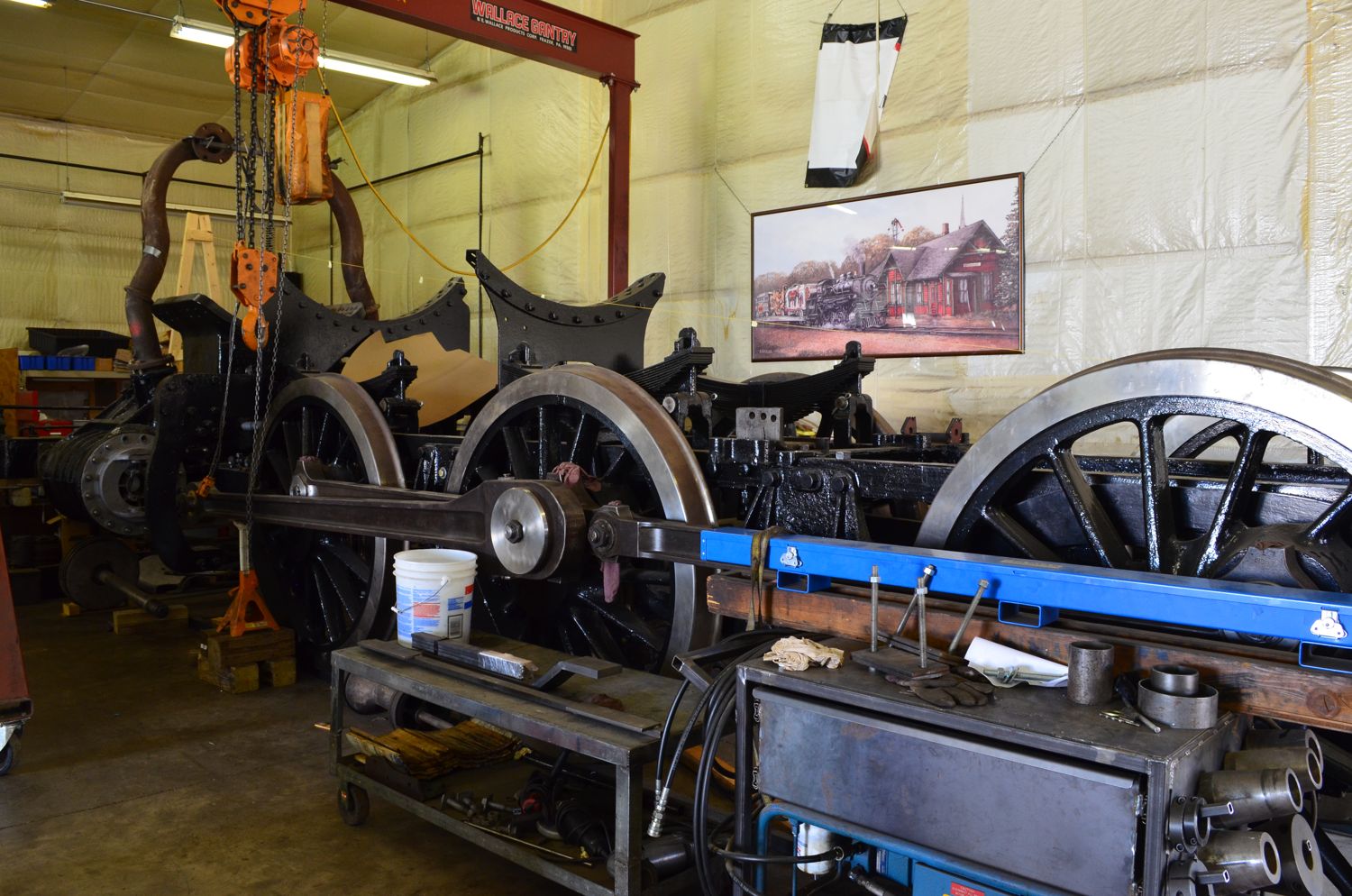

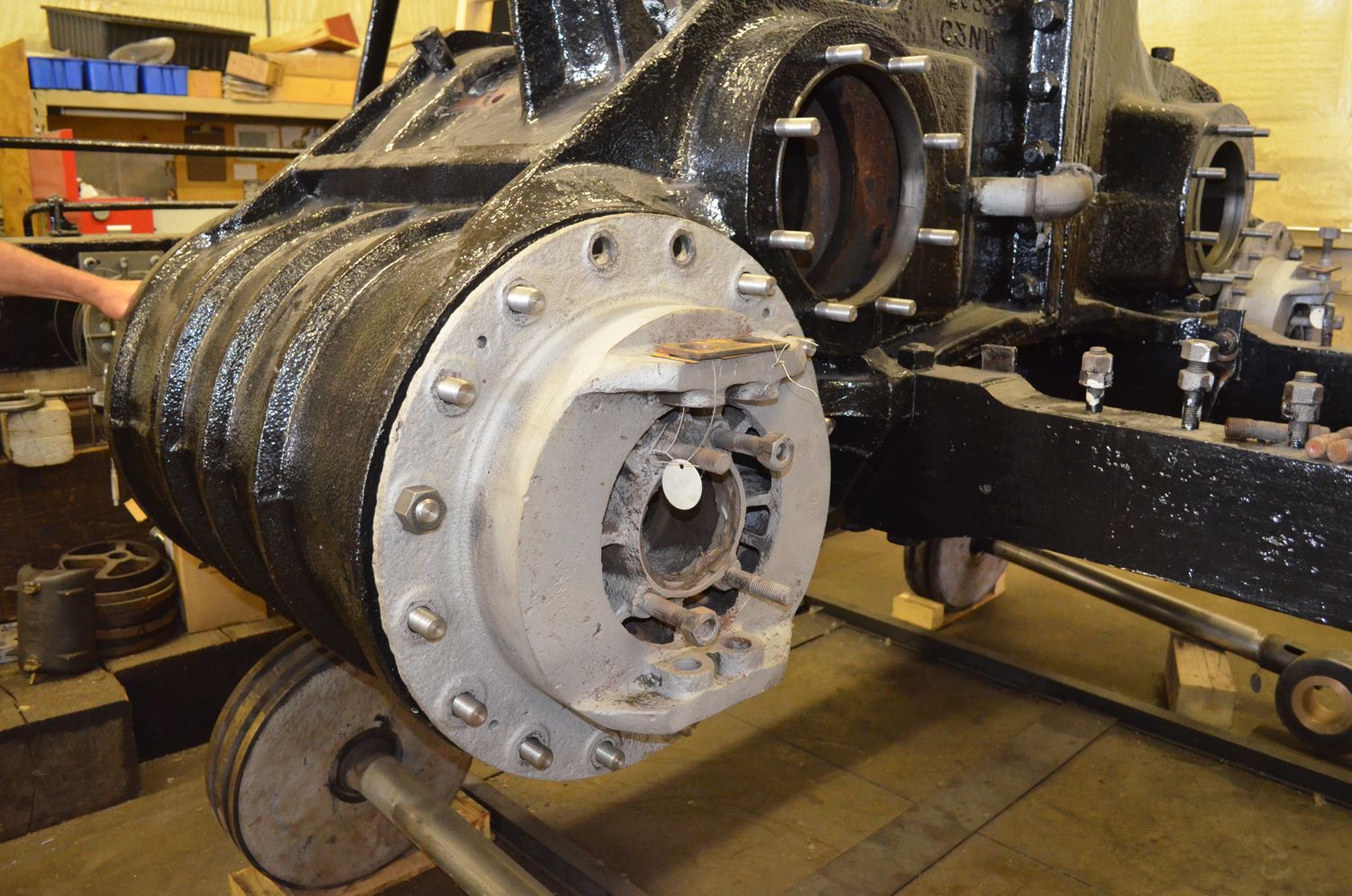

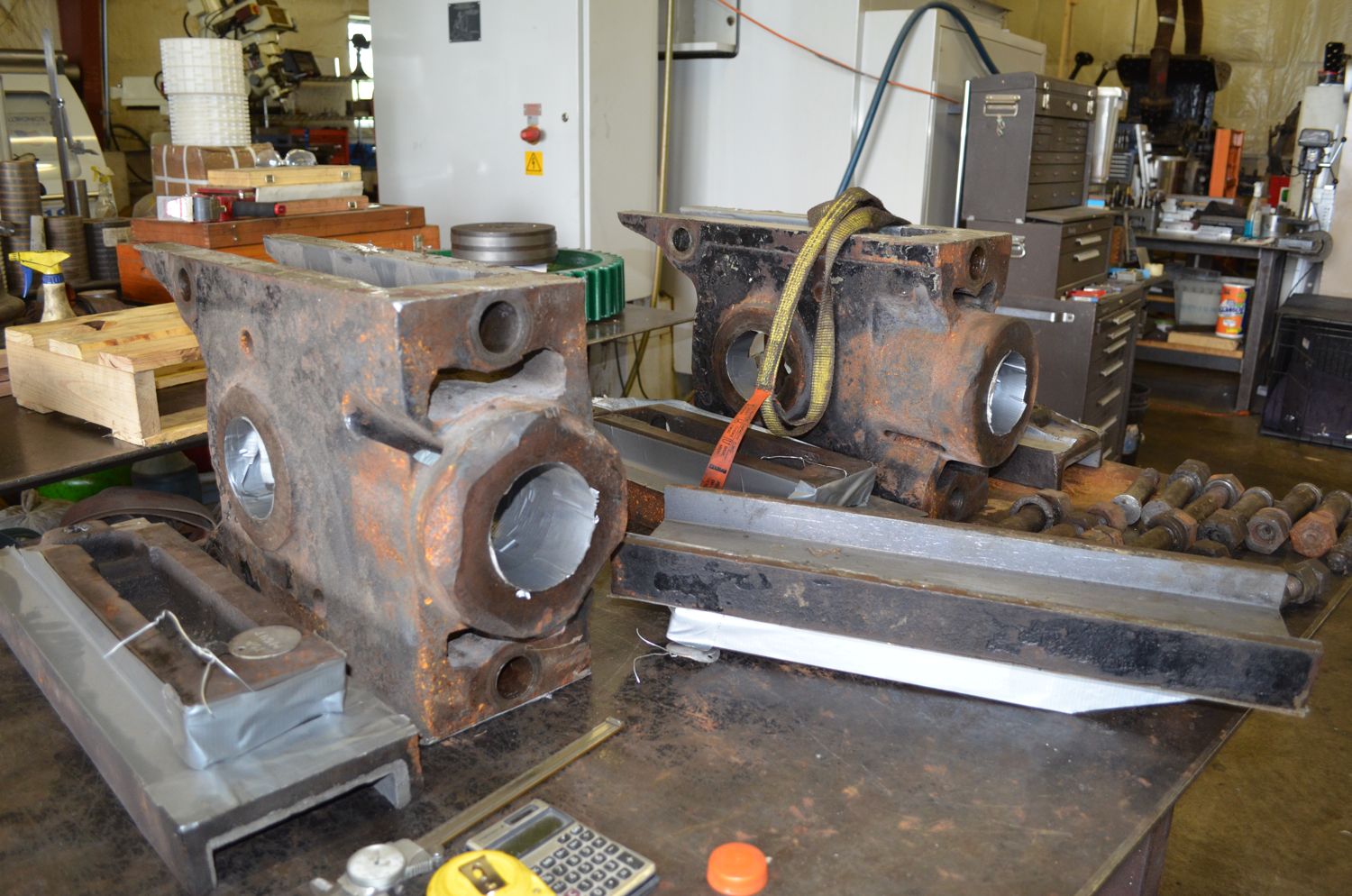

Above where the front truck will be rolled under, the pistons have been fully bored and the valve cages nearly completed. One of the valve cages that was found to have cracks is being replaced with a new one. The new valve cage is anticipated to be machined on SPEC’s CNC machine in the coming weeks. Work has also begun on the crosshead guides and valve gearing. After those tasks are complete, brake rigging and appliances will be next on the task list.

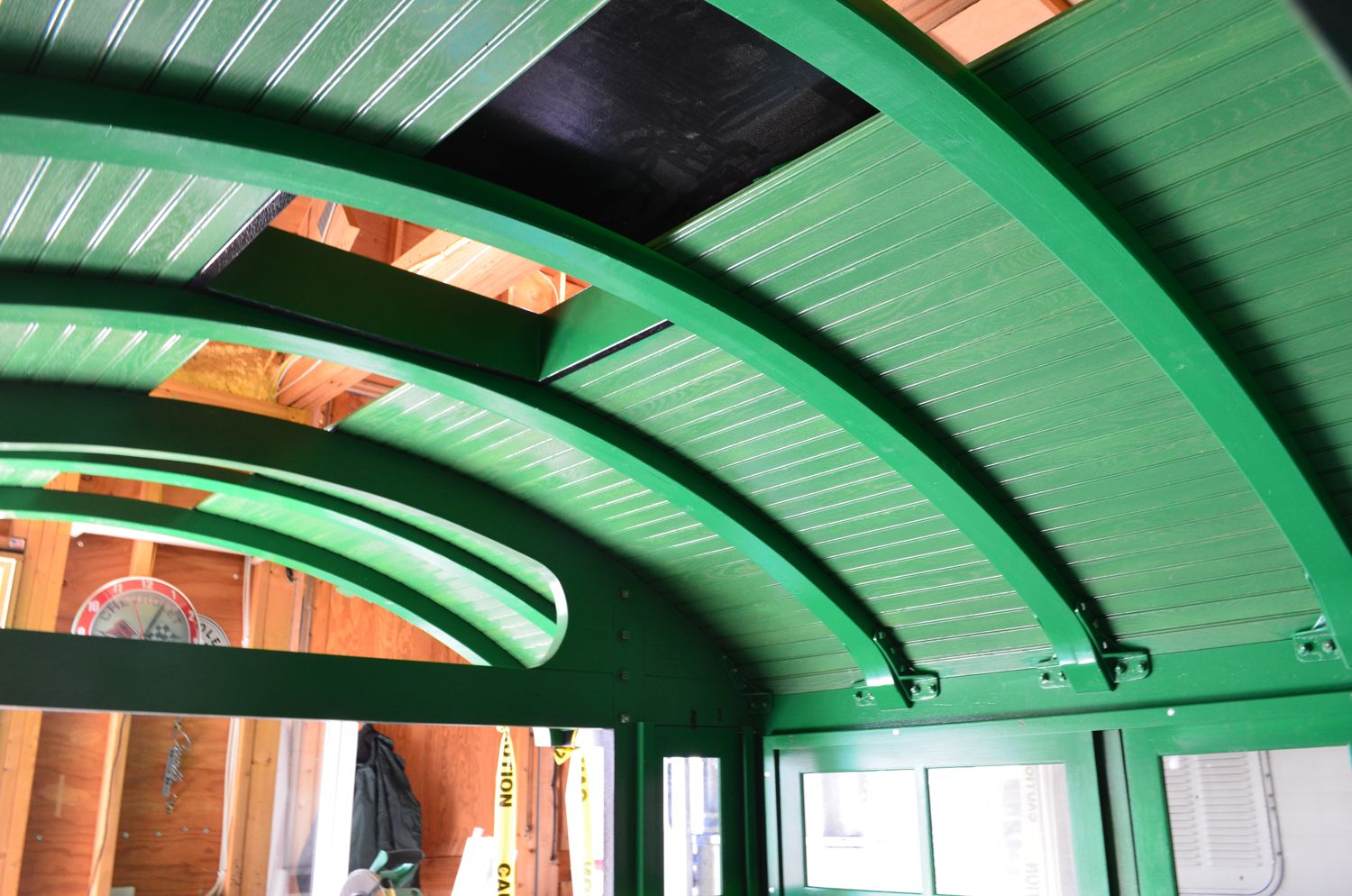

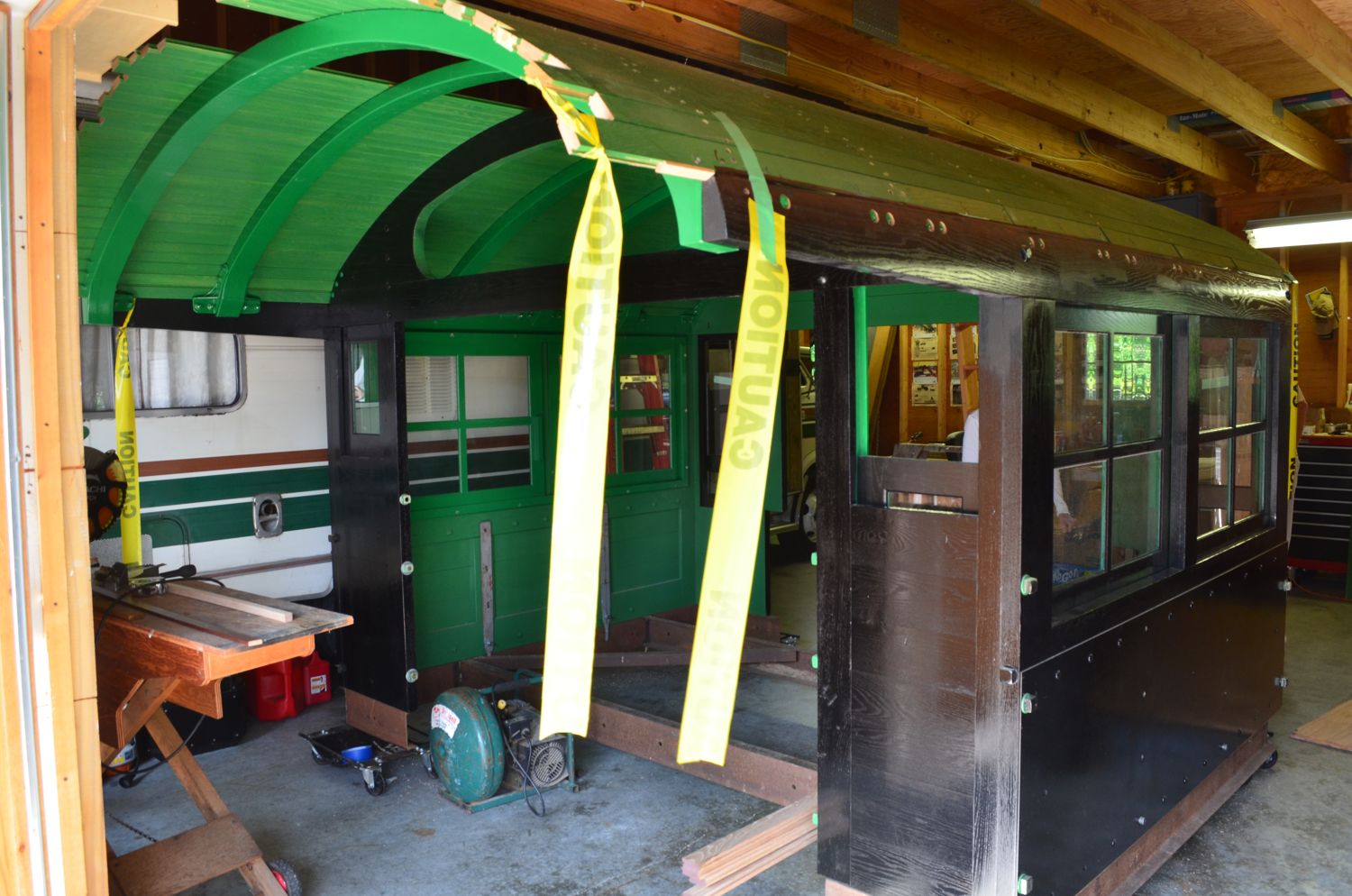

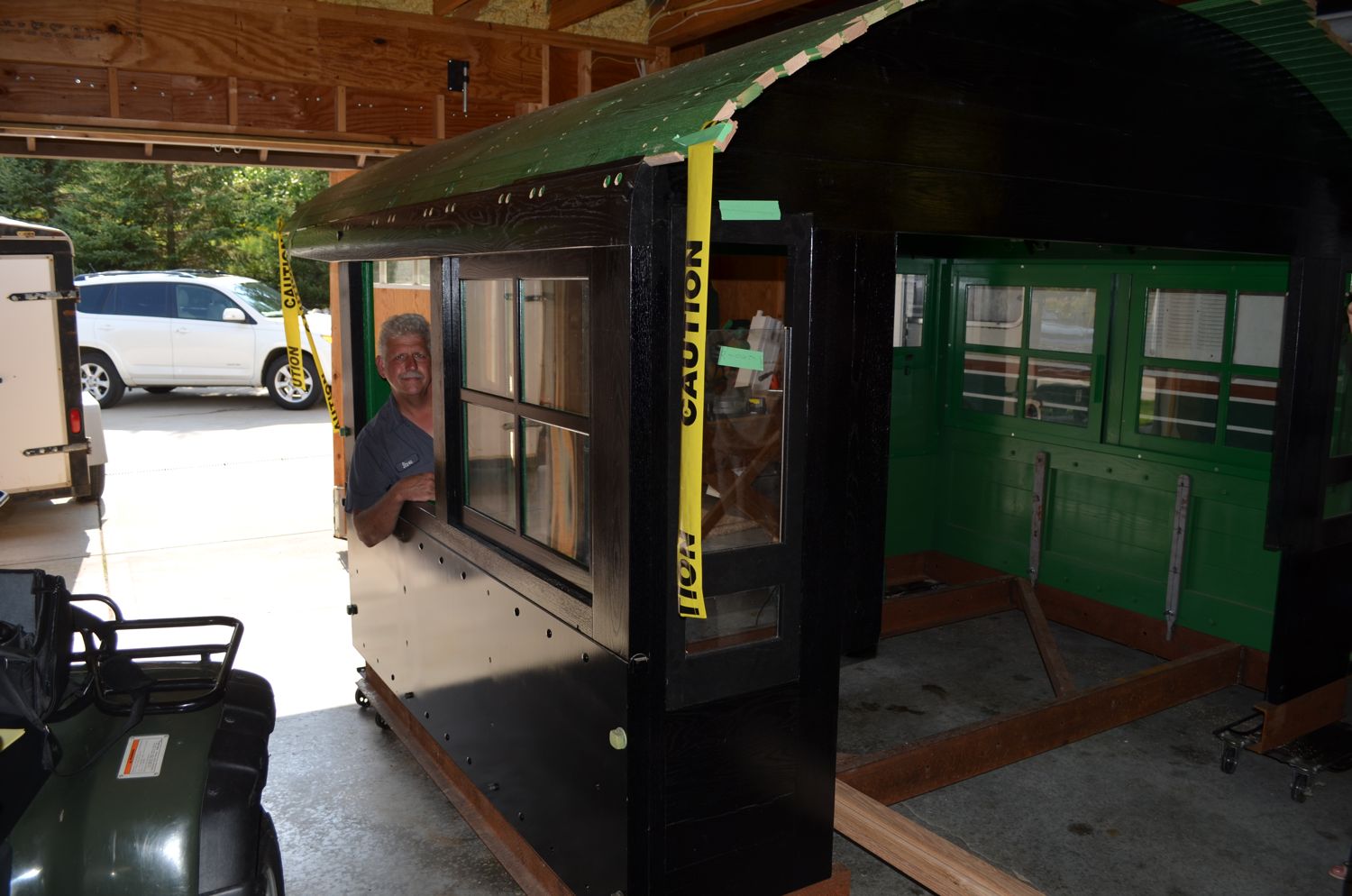

The two major components missing from the 1385 as it sits in the SPEC Machine shop is the cab and the boiler. To see the cab, we took a short drive to the shop of Loren Imhoff. Imhoff has graciously donated all his time spent working on the cab. Inside was a nearly complete cab. Already quite sharp looking with a bright green interior and a black exterior, another coat of paint will be added inside and out. The ceiling vent, which had proven to be a challenge due to limited available drawings, was complete and functioning. A few items remained to be completed: the ceiling needs a few boards painted and installed yet, the windows need a few hardware items remade to replace lost or broken originals, the seatboxes are not yet constructed, but all is expected to be completed by October and the cab brought to SPEC Machine so it can be made ready to mount to the frame and the roof weatherproofing material applied.

The other major component on which the 1385 Task Force has focused a great deal of attention on lately is the boiler. It has taken longer for the boiler to reach construction phase than was originally anticipated, but this was one area of the locomotive rebuild that was not to be rushed in any way. As the single most expensive component of the project, there is no room for error. Finally satisfied that the boiler design is ready for production, the 1385 Task Force has now begun gathering quotes for manufacturing of the new boiler. Once a vendor is selected and the order signed, production is expected to occur fairly quickly.

Front Truck Wheelsets Receive Turn on the Lathe

Mid-Continent Railway Museum Posted on by

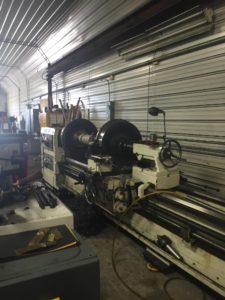

A quick update on the Chicago & North Western #1385. Earlier this week, one of the front truck wheelsets was being turned on a lathe. Work on these wheels is being carried out by Harvey Diversified Trades. (Pictures via Harvey Diversified Trades LLC Facebook page). The job prompted the Harvey Diversified Trades Facebook page to write “I used to think this lathe was big until we put a locomotive axle and wheels on it.”

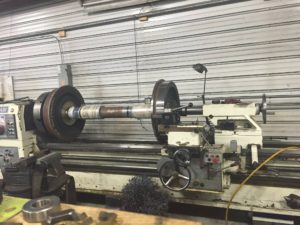

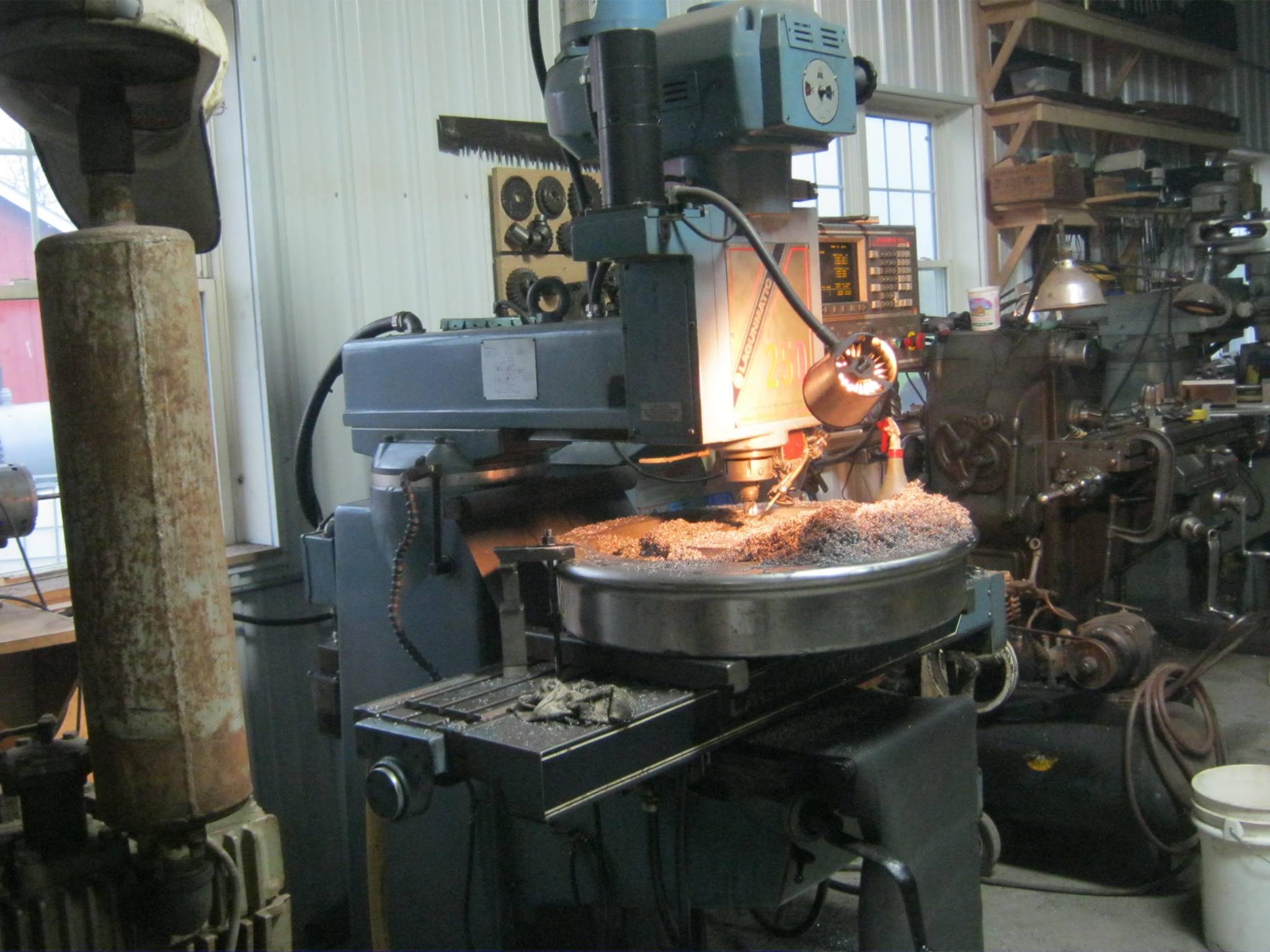

Machining C&NW 1385 pilot wheel

“Finished up the week machining on the front wheels for the 1385 steam locomotive for Mid-Continent Railroad Museum. Certainly kept the machine firmly on the floor….they are heavy.” — Harvey Diversified Trades Facebook

Two of the four 28″ lead truck wheels (pictured) are being retained and machined to specification, while the other two wheels were worn enough to necessitate replacement with brand new wheels. The new wheels were produced at a forge in Pennsylvania and delivered to Milwaukee, WI to be pressed onto the axle by NRE Wheel Works.

Both wheelsets will return to SPEC Machine in Middleton, WI where they will be united with the front truck assembly which has been undergoing repair work there.

1385 Status Overview

Mid-Continent Railway Museum Posted on by

Jeff Bloohm, President of Mid-Continent, has shared a brief overview of the Chicago & North Western No. 1385’s status.

Here is an update as to where the 1385 is towards completion:
Frame work including driving boxes save fitting the boiler mounts and furnace bearers, brake cylinders and valve gear pivot points is finished.

Work on the drivers is finished. Work on the rods save the wristpins into the crossheads is finished. The cylinders are finished. One valve cage is finished, the other about 40% done. Work on the drive wheel suspension is finished. The cab is 75% finished.

Work is now concentrating on the front truck and that is about 60% finished. The axles have been inspected and journals polished. The bad set of wheels has been pressed off and the new wheels are being machined. The wheels on the other axle are also being turned. The boiler design is within weeks of being ready for 3rd party review.

Work yet to be done:
Final teardown, cleaning, inspection and repair plan for the valve gear, pistons, valves, and brake rigging. All appliances still require inspection and repair planning. The superheater header, ash pan, and stack require close inspection and repair planning. The fountainhead and all valves need inspection/repair/replacement.

After delivery of the boiler, the jacketing will need repair/refitting/rework.
